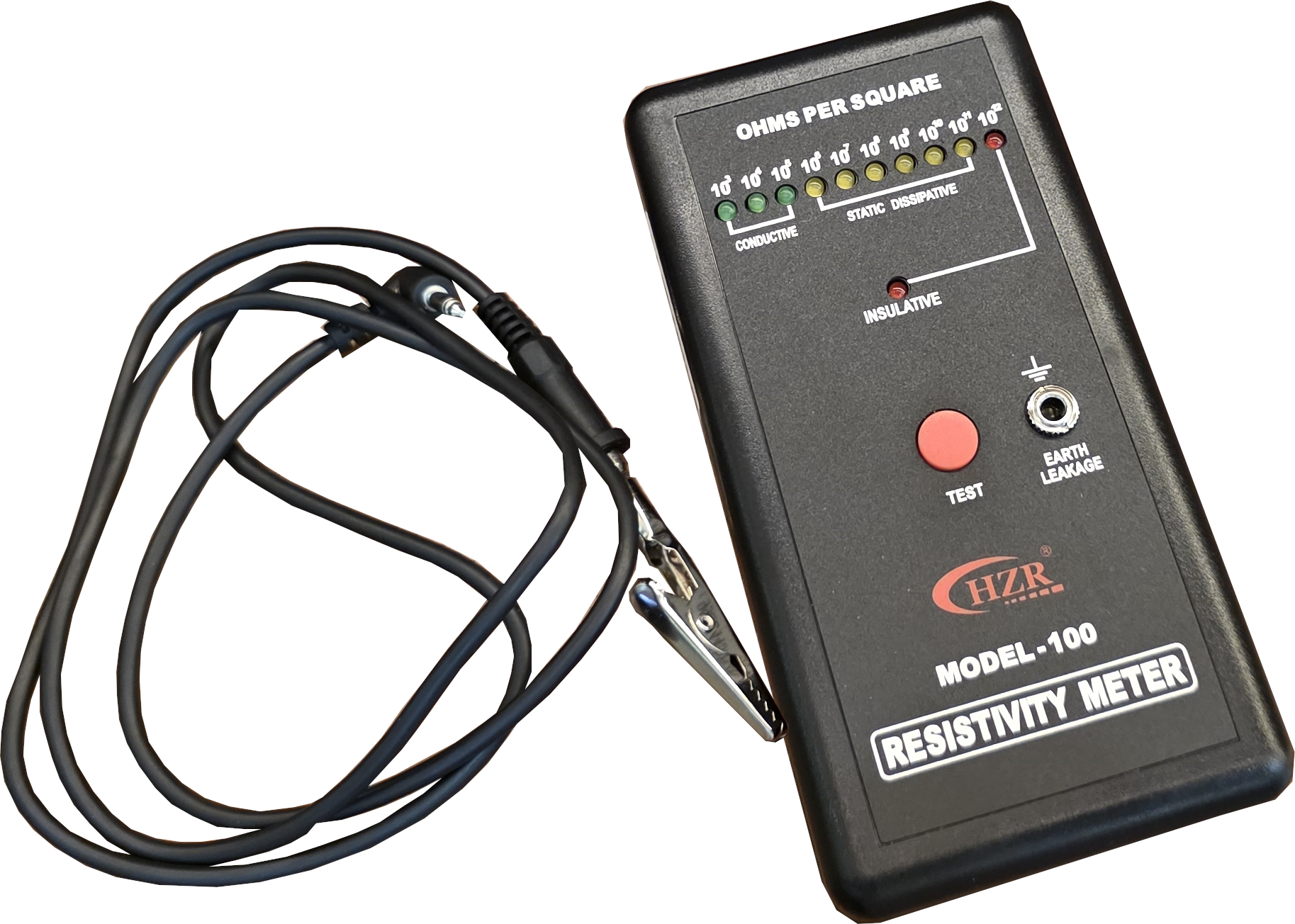

Surface Resistance meter
Surface resistant meters are essential tools for measuring and monitoring electrostatic discharge (ESD) levels to ensure the safety and reliability of electronic devices.
They are crucial in environments where static discharge can lead to equipment failure or product defects, such as in electronics manufacturing and cleanrooms.
FEATURES
SPECIFICATION
FEATURES
- Handheld, portable and easy to use.

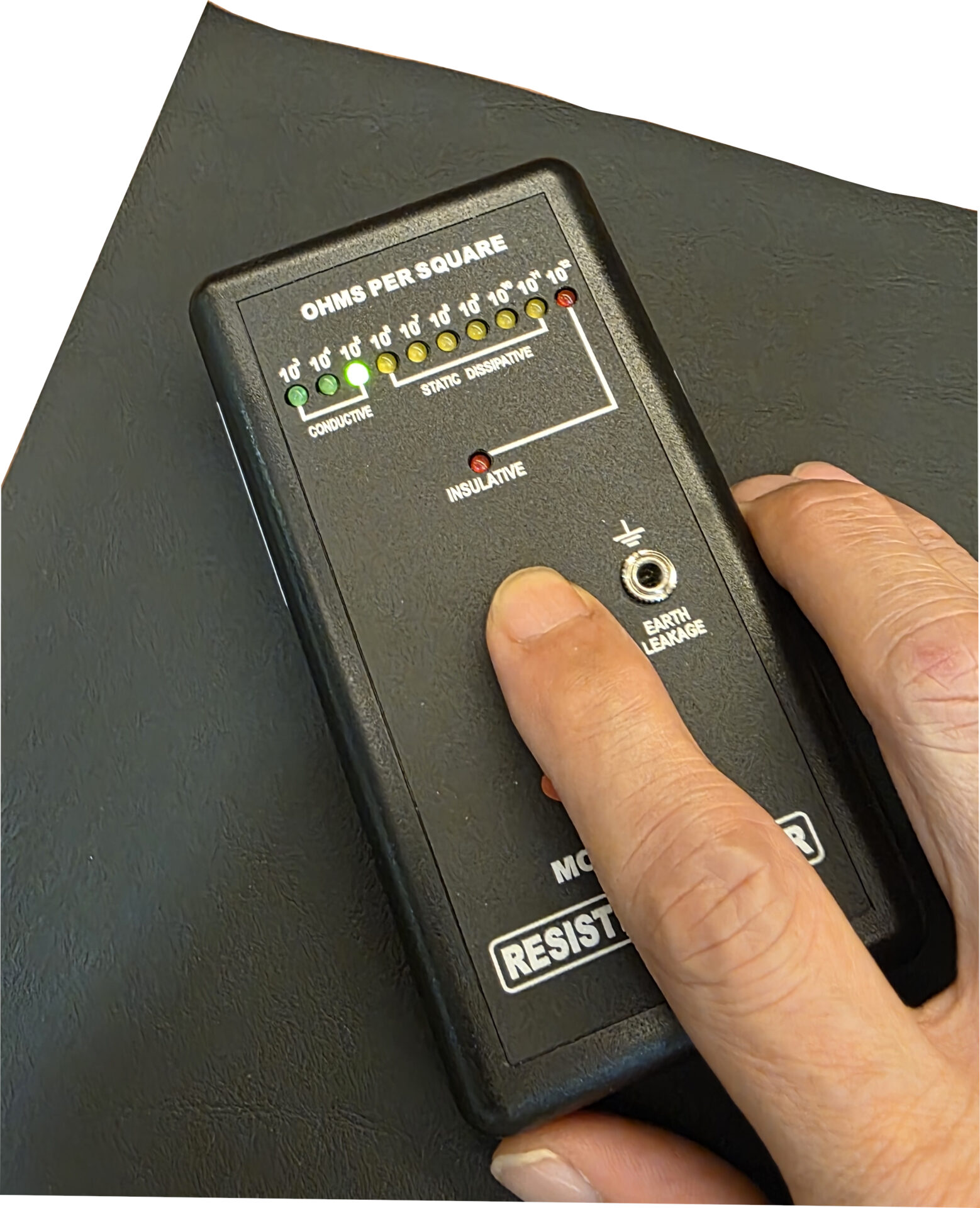

- Quick verification on surface resistivity of ESD safe material
- LED light display on 3 different resistant range
- Fast response speed
- Full range of measurement
- With ground cable for resistant to ground measurement
- 9V Battery operation
SPECIFICATION
- Product Model EE-SRM100
- Size (W x L x H mm) 70mm x 130mm x 25mm
- Weight 100g (including battery)
- Measurement range
- (Surface resistivity) 10 3 – 10 12 Ω/Sq
- Measurement range
- (Resistance to Ground) 10 3 – 10 12 Ω
- Operation humidity 5% – 95% RH
- Operation temperature 5°C – 49°C
- Measurement accuracy +/- 10%
- Power supply 9V battery (~40hrs operation time)
- Accessories Ground cable with clip
