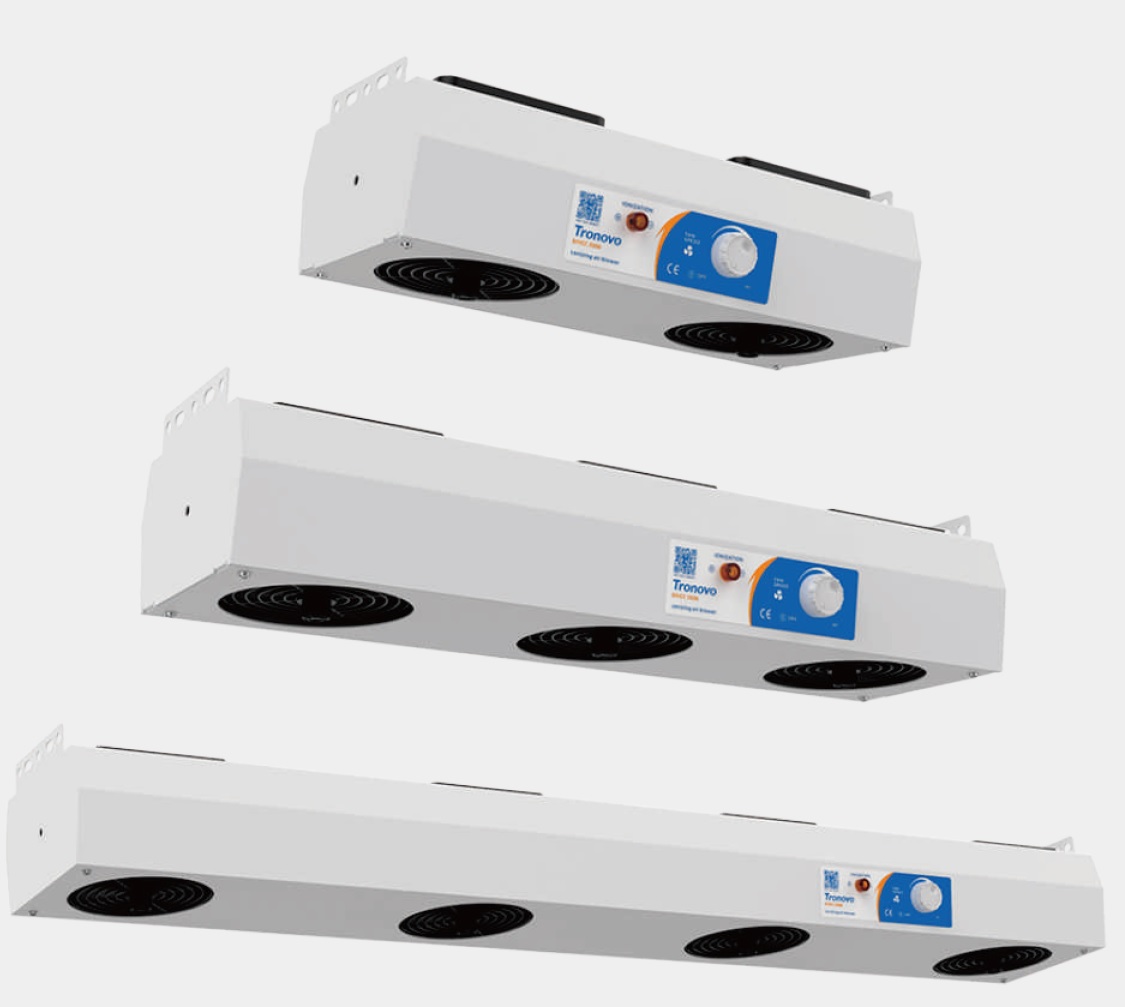

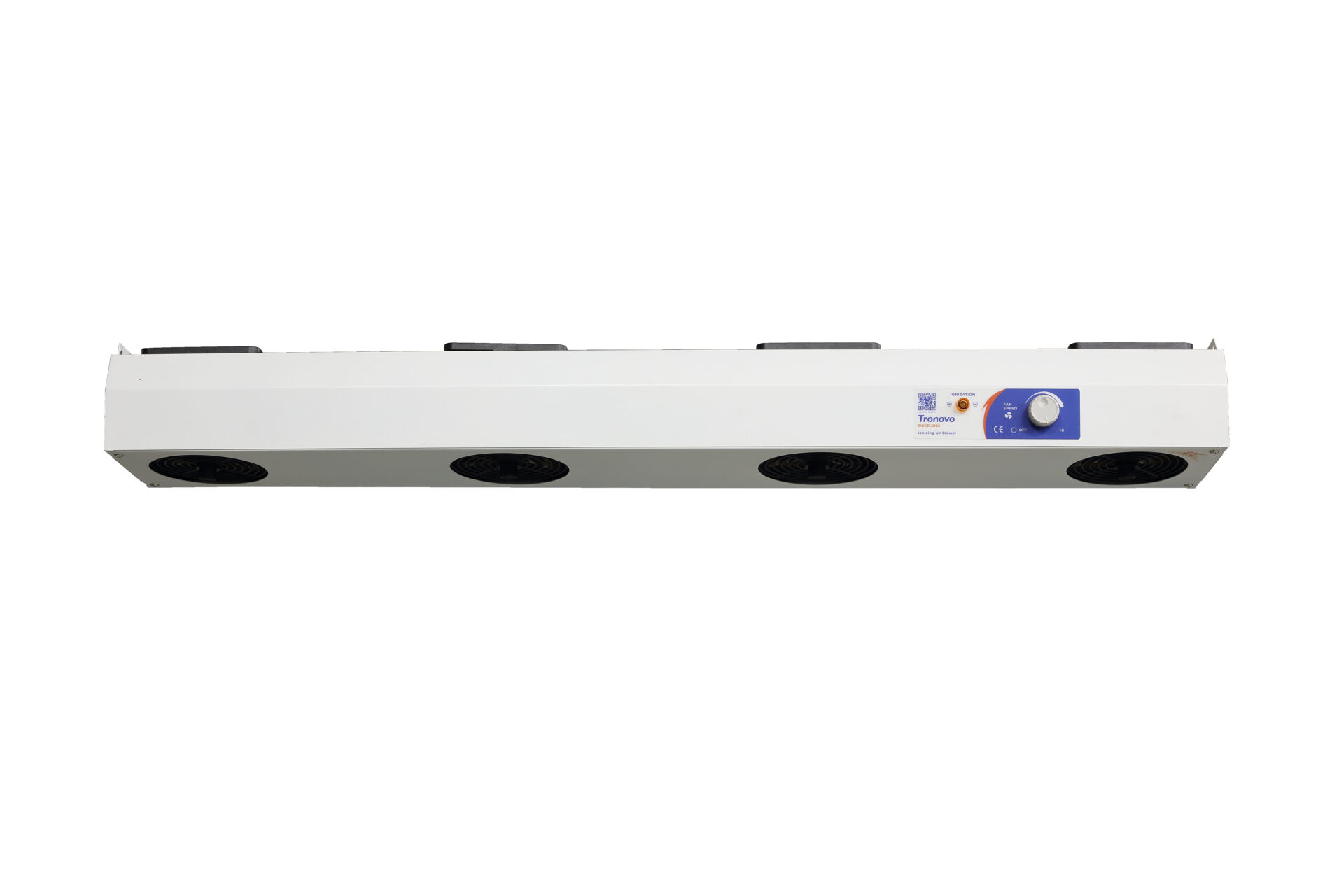

Overhead lonizing Blower
AC ionizer with excellent ion balance and fast static elimination for static removal. This overhead ionizer produces a balance flow of positive and negative ions without any calibration over the entire working area under ionization. It has built-in lamp, and heater for operator comfort.
Suitable to use in the Cleanrooms and ESD Protected Areas.
FEATURES
SPECIFICATION
FEATURES
- AC corona technology type with fast elimination of static
electricity at entire work station. - Stable ion balance.
- Fan speed is regulated, air flow can be adjusted.
- Built-in needle cleaning brush simplify maintenance.
- Air inlet filter helps to filter out dust or other debris.
SPECIFICATION
- Voltage 220V /50HZ or 110V/60Hz
- Power (Heater on)
- 400mm – 60w (heater on)
- 600mm – 90w
- 1200mm – 120w

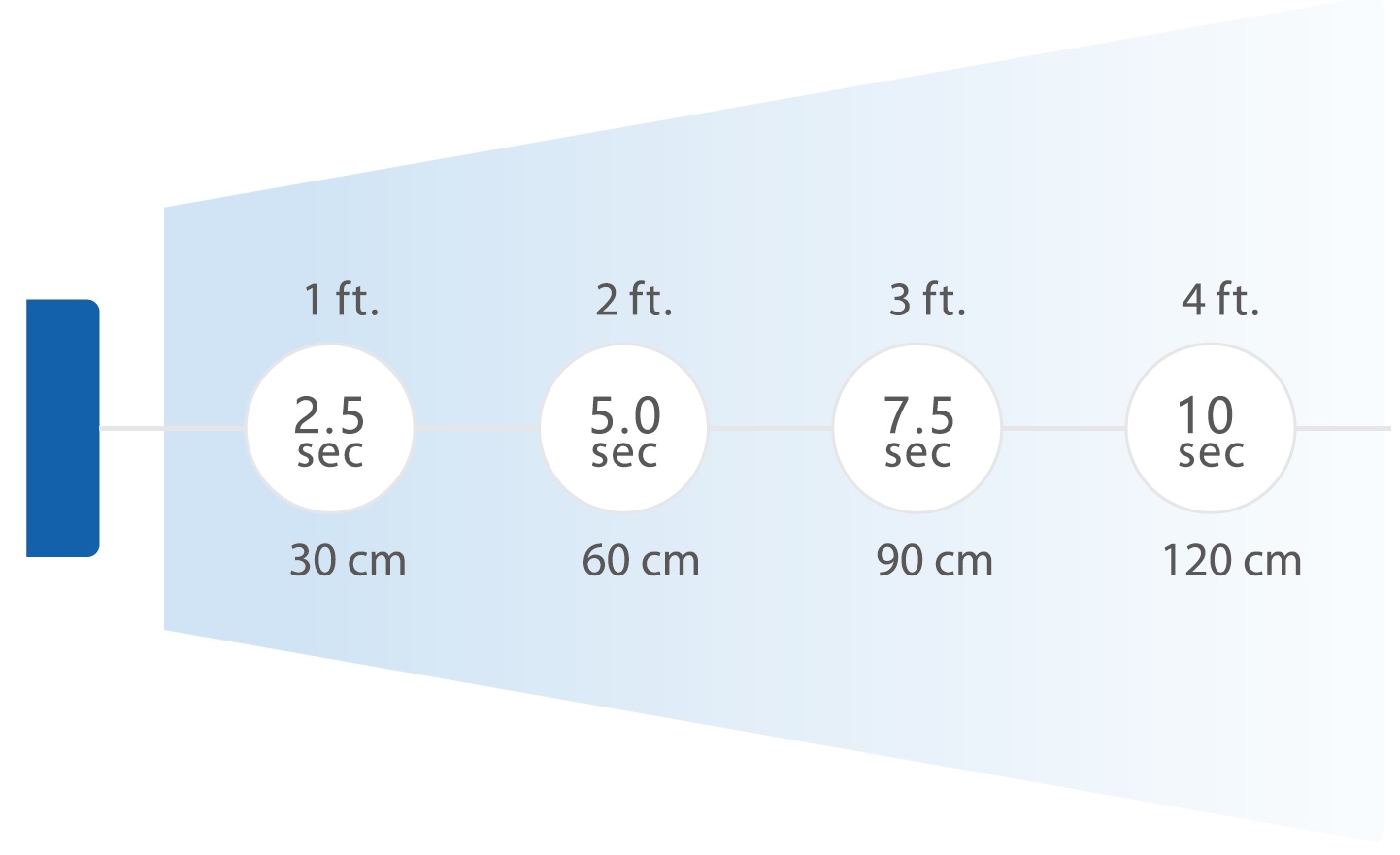

- Static Discharge ≤ 2.5 s @ 30cm (Max Airflow)
- Ion Balance (Ave) ≤ (± 15V)
- Airflow Area / Airflow
- 400mm – 400 x 1200mm / 2 x 45 ~ 110cfm
- 600mm – 600 x 1200mm /3 x 45 ~ 110cfm
- 1200mm – 1100 x 1200mm / 4 x 45 ~ 110cfm
- Dimensions / Weight
- 400mm x 168mm x 126mm / 4.2kg
- 600mm x 168mm x 126mm / 5.2kg
- 1100mm x 168mm x 126mm / 7.6kg
